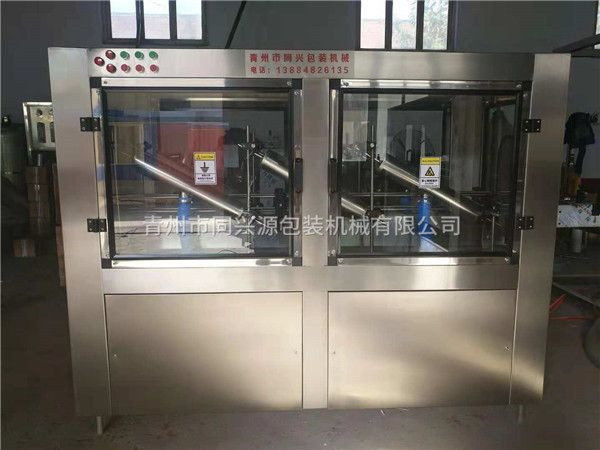

Fd-6 air knife dryer

Features and benefits

Fd-6 dryer is an air knife dryer. The air passes through the filter and enters the low-temperature fan. After the air is compressed, it enters the air knife through the pipe. A strong wind belt is formed at the edge of the air knife. The water droplets and water film on the bottle wall are forced to dry from different directions by high-speed wind. It is suitable for medium and high-speed production line, such as: beer production line, medium and high-speed liquor production line, health wine production line.

Main technical parameters

Power: 16.5kw

Output: 3000-5000 bottles / h

Dimension: 2000 * 800 * 1400mm

Maximum flow rate of 5.5kW vortex air pump: 380m3 / h

Maximum flow rate of 2.2kW vortex air pump: 180m3 / h

Maximum flow rate of 7.5kW vortex air pump: 480 m3 / h
