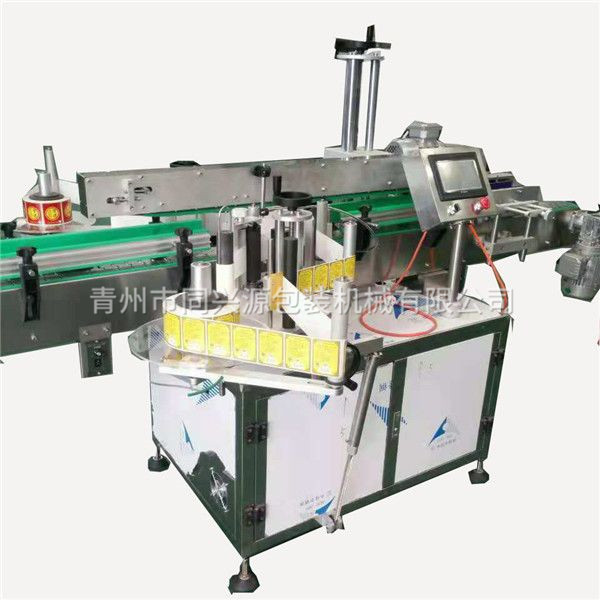

Tb-b full automatic double-sided adhesive label machine
Main performance and characteristics:
It is suitable for automatic double-sided labeling of flat, square and round bottle products in food, medicine, daily chemical and other light industries.
The machine is multi-purpose and suitable for square bottles and flat bottles at the same time. It can be used on a single machine or on-line.
Advanced friendly human-machine interface system, simple and intuitive operation, complete functions, with rich online help functions.
One machine can complete four types (square bottles, flat bottles, round bottles, shaped bottles) and various specifications of double side labeling.
It is designed for flat and square bottles with irregular surface and radian to ensure the labeling accuracy and effect.
the double side chain corrector ensures the bottle to be neutral
Special elastic top pressing device ensures the stability of bottle body
More configuration options → synchronous hot printer, synchronous completion of printer labeling
transparent label sensor
technical parameter
Labeling speed: 40-200 pieces / min (related to material and label size | Labeling accuracy: ± 1.0mm (excluding material and label size) | Use roll ID label: 76mm |
Label size: (L) 20-300 mm (H) 10-180 mm | Material size: (W) 20-200 mm (H) 40-300 mm | Material size: (W) 20-200 mm (H) 40-300 mm |
Machine size: (L) 2400 * (W) 1400 * (H) 1700 (mm) | Power consumption: AC220 V, 50 Hz / 60 Hz, 1200 W |
