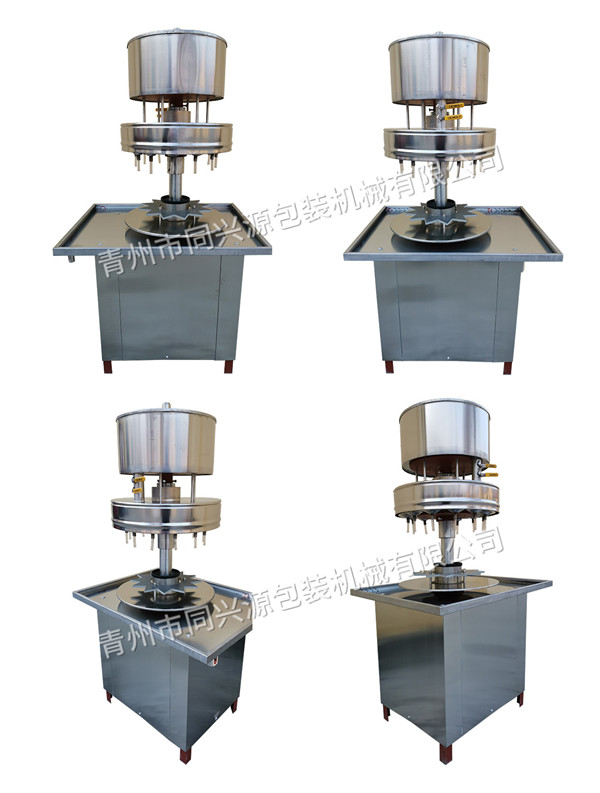

Gzd-12 universal liquid filling machine
Scope of application
It is suitable for filling liquid without gas such as beverage, liquor, mineral water and fruit wine.
Product introduction
The universal liquid filling machine is used for the quantitative filling of various kinds of non gas beverage, wine, seasoning, liquid medicine and other liquids. In particular, the height error of bottles with uniform specifications is less than 20 mm, which can be filled at the same time without debugging. The machine is small in size, light in weight, compact in structure, long in service life, simple in maintenance and convenient in operation, and can be operated by ordinary workers on the machine. The parts in contact with the liquid are made of high-quality stainless steel to ensure that the liquid will not be polluted, and the liquid will not be polluted. It is corrosion-resistant. The appearance of the whole machine is beautiful and elegant, which meets the food hygiene standards.
1. The quantitative filling machine adopts the principle of constant speed, equal division and constant pressure. It has high precision, simple adjustment and reliable operation.
2. All parts in contact with the filled liquid are made of stainless steel or materials to ensure that the filled liquid is not polluted and meets the food hygiene standards.
3. The main exposed parts of the machine are made of stainless steel with beautiful appearance. The transmission parts are placed in the frame, with compact structure, stable operation and low noise.
4. A fine adjustment mechanism is installed near the quantitative control valve to facilitate the fine adjustment of the filling amount of the mechanism.
5. If the automatic bottle in and out mechanism is attached to the worktable, it can be equipped on the production line to realize automatic filling. This machine is used for quantitative filling of all kinds of liquors, drinks, condiments, liquid medicines and other liquids without gas. Especially, the height error of a batch of bottles of the same specification is within 20 mm. It can be filled at the same time without adjusting the car. This machine is not limited by the shape of the bottle. It can be used to fill all kinds of shaped bottles.
Main technical parameters
Number of filling heads: 12 | Production capacity: 1500 bottles / h | Measurement error: ± 1% |
Bottle height: 60-330mm | Filling capacity: 200-800ml | Motor power: 0.37kw |
Weight: 100kg | Dimension: 900 * 600 * 1600mm |
